One of the most important design
considerations for any system is the
pointing accuracy and stability of the
antenna to ensure it stays on satellite
whatever happens. Cobham SATCOM
invented the stabilized antenna systems
and continues to lead the market in
terms of robustness, vibration and
shock tolerance. The Sea Tel 2400 is no
exception and has passed rigorous testing
to include IEC 60945 and MIL 901D class
B testing for shock and vibration as well as
temperature testing to ensure the Sea Tel
2400 will continue to operate and survive
in the harshest environments experienced
at sea. The robust antenna design allows
the antenna to absorb a tremendous level
of shock and vibrations with no impact on
performance or longevity of the system.
Shipped in two crates in three preassembled
units, the system is easily
installed in a single day. As the
installation footprint is identical to that
of Sea Tel 9711, there is no need to
change platforms when upgrading to
the Sea Tel 2400.
The Sea Tel 2400 series allows
customers to purchase a dual band
system now and upgrade to Triband
whenever you decide to do so. There
is no longer a need to tie up capital for
equipment now that you will not use for
a year or two – or may not be certain
that you will ever need it in the future.
With the Sea Tel 2400 you are ready for
the future. What you purchase today will
be ready for the demands of tomorrow.
SYSTEM WEIGHT (ADE)
Install Weight (typically) 1300 Lbs (590kgs) (with 144” radome)
Shipment Weight (typically) System Crate 1830lbs (830kgs)
Radome Crate 1900lbs (862kgs)

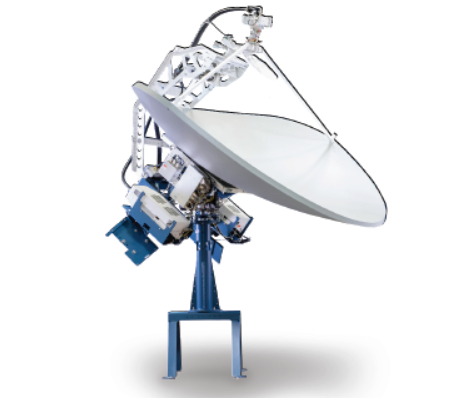

STABILIZED ANTENNA PEDESTAL ASSEMBLY
Type Three-axis (Level, Cross Level and Azimuth)
Stabilization Torque Mode Servo / Two Axis W/Pol
Stability Accuracy 0.1° RMS, 0.2° peak in presence of specified
ship motions (see below).
POWER REQUIREMENTS
ADE 85-264 VAC, 47-63Hz, single phase, Pedestal=450
Watts (brake release, pedestal drive and BUC drive)
PLUS RF Equipment=2150Watts max.
Total power consumption=2600Watts
ANTENNA REFLECTOR (PRIMARY)
Type Honeycomb Fiberglass Parabola
2.4 Meter Modified Offset
IN RADOME RF PERFORMANCE
C-Band
TX Gain 41.7 dBi at 6.18 GHz
RX Gain 37.5 dBi @ 3.95 GHz
G/T (30° elevation, clear sky) 19.2 dB/K @ 3.95 GHz (calculated)
Ku-Band
TX Gain 48.5 dBi @ 14.25 GHz (using Sub reflector)
RX Gain 46.7 dBi @ 11.8 GHz (using Sub reflector)
G/T (30° elevation, clear sky) 27.2 dB/K @ 12.75 GHz (calculated)
Ka-Band
TX Gain 53.9 dBi @ 28.75 GHz (using Sub reflector)
RX Gain 50.5 dBi @ 19.0 GHz (using Sub reflector)
G/T (30° elevation, clear sky) 26.4 dB/K @ 19.0 GHz (calculated)
PEDESTAL RANGE OF MOTION:
Elevation Bore Angle -16.6 to +105.4 degrees
Cross Level (Inclined 30°) +/- 30 degrees
Azimuth Unlimited
Elevation Pointing +0 to +85 degrees (with 15 degree Roll)
+5 to +80 degrees (with 20 degree Roll)
+10 to +75 degrees (with 25 degree Roll)
Relative Azimuth Pointing Unlimited
MAXIMUM SHIP MOTIONS
Roll +/- 25 degrees (Roll only)
+/- 20 degrees (combined with Pitch)
Pitch +/-15° at 6-12 sec periods
Yaw +/-8 degrees at 15-20 sec periods
Turning rate Up to 12 deg/sec and 15 deg/sec/sec
Headway Up to 50 knots
Heave 0.5G
Surge 0.2G
Sway 0.2G
SPECIFIED SHIP MOTION (for stability accuracy tests)
Roll +/- 20° at 8 second period
Pitch 10° Fixed
Relative Azimuth (Heading) 0, 45 and 90° with respect to roll input
POWER SUPPLY (ADE-PCU)
A/C Input Voltage 85-264 VAC, 47-63Hz, single phase
Voltage 24 VDC, 150W
Wattage 150W (total)
Current Capacity 13.0A (total)
GPS (On Board)
Waterproof IPX7
Operating Temperature -30°C to +60°C
Storage Temperature -40°C to +60°C
Altitude -304m to 18,000m`
Vibration IEC 68-2-64
Shock 50G Peak, 11ms
Connector RJ11
NMEA output messages GGA, GLL
Refresh Rate 1s
INTEGRATED CONTROL UNIT (ICU)
Integrated SCPC Receiver
Tuning Range 950 to 1950 MHz in 1 KHz increments
Input RF Level -85 to -25dBm typical
Output RF Level Input level +/- 1dB typical
Sensitivity 30mV/dB typical (25 counts/dB typical)
Bandwidth (3dB) 150 KHz
Interfaces
Modem/MXP M&C Interface OpenAMIP & Legacy
Network Interface 4-port managed fast ethernet switch
User Interface Web Browser/Console Port 1s
RADOME ASSEMBLY (144 inch)
Type Frequency Tuned
Material Composite foam/laminate
Size
Diameter 365.76cm (144 inch)
Height 360-68cm (142 inch)
Hatch Size 45.72cm x 86.36cm (18” high x 34” wide)
Side Door 45.72cm x 91.44cm (18” wide x 36” high)
Number of panels Twelve panels (6 upper & 6 lower panels),
one top cap and one base pan
Installed height: 416-56cm (164 inch) including base frame if
mounted with standard Legs, 375.92cm
(148 inch) if Flush-mounted
Installed weight See System Weight of the ADE Above (includes
Radome, base frame w/standard legs & braces
and the Antenna Pedestal Assembly)
Wind: Withstand relative average winds up to
201 Kmph (125 mph) from any direction.
Ingress Protection Rating IP 56
ADE ENVIRONMENTAL CONDITIONS
Temperature Range (Operating) -25º to +55º Celsius (-13º to +131º F)
Humidity 100% Condensing
Wind Speed 56 m/sec (125 mph)
Solar Radiation 1,120 Watts per square meter, 55º Celsius
Spray Resistant to water penetration sprayed from any direction.
Icing Survive ice loads of 4.5 pounds per square foot. Degraded
RF performance will occur under icing conditions.
Rain Up to 101.6mm (4 inches) per hour. Degraded RF perfor -
mance may occur when the radome surface is wet.
Corrosion Parts are corrosion resistant or are treated to endure
effects of salt air and salt spray. The equipment is specifically
designed and manufactured for marine use.
BELOW DECKS EQUIPMENT
Media Xchange Point (MXP)
Standard 19 Inch Rack mount One Unit High
Physical Dimensions 17 X 17 X 1.75 (Inches)/ 43.18 x 43.18 x 4.45 (cm)
Input Voltage 85-264 VAC, 47-63Hz, single phase, 110 Watts
Weight 6.6lbs/ 3.0 kgs
Rear Panel Connections
AC Input Modular AC Power Input Receptacle
J1 F (F) - RXIF Output to Satellite Modem
J2 SMA (F) - RXIF Input from ADE
J3 B/A Ethernet - 2 ports of the 4 Port 10/100
J4 B/A Ethernet - 2 ports of the 4 Port 10/100
J5 SFP Gigabit Ethernet
J6 Mini USB Antenna M&C
J7 USB Host (Type A) - N/C - Future Developement
J8 DE9 (F) - Serial Console - Antenna Serial M&C
J9 A/B RJ45 Serial M&C - A=Radio M&C, B=Pass through
J10 C/D RJ45 Serial M&C - C=Modem, D=OBM
J11 Terminal Strip - Gyro Compass (SBS-Synchro)
Interface Terminals
J12 Terminal Strip - Auxiliary Interface Terminals
J13 DE-9 (M) - NMEA 0183 Interface Port
J14 DE-9 (M) - AUX (RS-232) Interface Port
J15 NMEA 2000 Interface Port - Future Development
BDE ENVIRONMENTAL CONDITIONS
Temperature 0 to 40 degrees C
Humidity Up to 100% @ 40 degrees C, Non-Condensing
REGULATORY COMPLIANCE
Survival Shock and Vibration IEC-60945, MIL-STD-167
Operational Shock and Vibration Operational: IEC-60945, Survival: MIL STD-167
EMI/EMC Compliance Ku-Band ETSI EN 301 843-1 V1.4.1 (2004-06)
ETSI EN 301 489-1 V1.4.1 (2002-08)
ETSI EN 300 339 (1998-03)
IEC EN 60945:1997
Satellite Earth Stations and System (SES) ETSI EN 301 428-1 V1.3.1 (2006-02)
ETSI EN 302 340 V1.1.1 (2006-04)
Safety Compliance IEC EN 60950-1:2001 (1st Edition)
Environmental Compliance RoHS
Green Passport
FCC ESV Compliance C-Band 47 C.F.R. § 25.221
FCC ESV Compliance Ku-Band 47 C.F.R. § 25.222
FCC ESV Compliance Ka-Band 47 C.F.R. § 25.138 (FSS)
Options Bluetooth
